The JemRF WiFi Pro Devices support White Label Option

The WiFi Pro series supports a private control panel to alter the devices appearance and customize it for your business. The hidden control panel provides customization of the sensor or gateway when viewed on the regular sensor control panel pages.

Other options with the White Label feature, you can enable a simple access control option that will show a Authentication Key field, if enabled at the bottom of all pages.
If provides an option to upload a private or Self-Signed SSL Certificate.

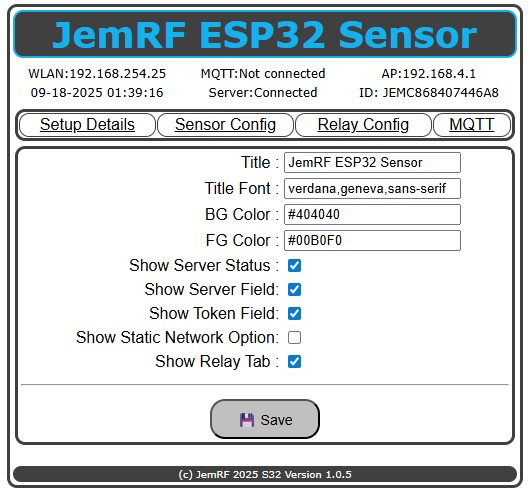

The image below shows the White Label Features page.

White Label Options

Display Options

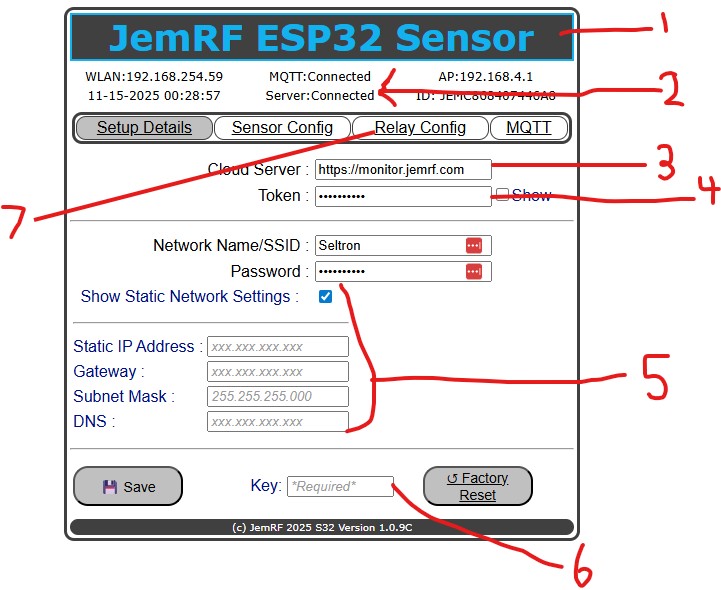

The next image shows all the different fields that can be shown or hidden using Whitelabel page.
Fields options apply to:

  1. Customizing the banner words and title at the top, including foreground and background colors.
  2. Hiding the Server Status in the banner area at the top of the page
  3. Hiding the Server URL if not used

  4. Hiding the Token field
    • Or it can be set and then hidden from your customers if used else leave blank before hiding
  5. Hiding or showing the options to set the network address manually
  6. Enter Authentication Key if Authentication is enabled.

Controls (Not Shown) for fields that are not on all devices:\

  1. Enable or hide the Relay Config Tab if not needed(if device has option).
  2. Send the WLAN IP if the JSON option is selected as the MQTT Send Data Format is selected. (Sensors Only)
White Label Options

The image below displays the default Setup Details tab, which includes all available options.

Full Setup Options

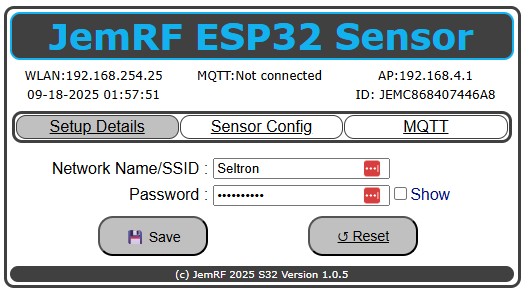

With all the options set to hide, the Setup Details tab is set to minimal, and the Relay Tab is gone

Minimun Setup Options

Authentication Key

The sensor has the option to prevent accidental changes to the settings. That is done enabling the “Enable Authentication” check box.

When enabled, the Key field will turn Yellow when there is a change that needs the Key to authorize. When the correct Key is entered and you click off the Key field it will be validated and turn Green if Ok and Red if incorrect.

White Label Options

You have the option to use the default key or enter your own Custom User Key. The default Key is base on the Sensor date and changes each day. If using a Custom User Key, it Must be 10 characters.
The format for the default Key is the two digits for the month, day, the last two digits of the year and the first four characters after JEM or JRF.

Example:
Date is 11-15-2025 00:13:25
ID: JEMC868407446A8
The resulting default Key would be 111525C868.

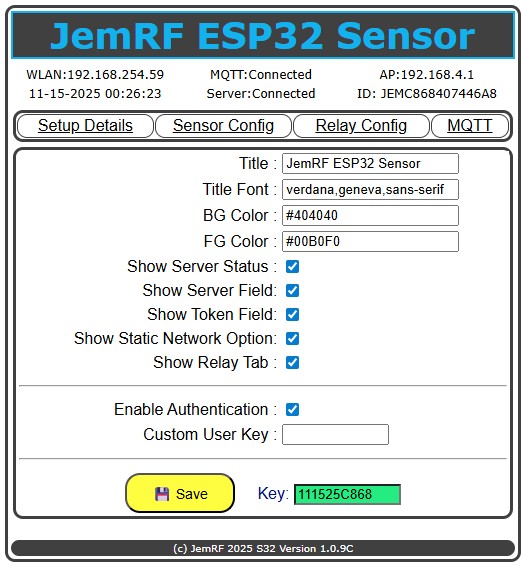

You can see in this example, the Green Key field has the correct value.

White Label Options

Private Certificate

The private Certificate file provides the option to upload one or two additional Security Certificates. This provides options to use third party certificates or self generated certificates.

Certificates must be in plain text format with Begin Certificate at the top and End Certificate at the bottom. The standard for plain text is a “.pem” file extension.

White Label Options

Reset Custom Key

If you enter a Custom User Key and forget it, you can get a temporary key by contacting Sales @ jemrf.com. Sales will provide a link to the Generate a Temporary Access code.

Here is what the generator page looks like. Copy and paste the time from the sensor in the Date/Time field and copy and paste the “ID” in the upper right on the sensor page into the “Device ID” field. The temp key is good for the current hour. Meaning if the time is 12:55:00 the key will only be good for 5 minutes. If the time is 12:01:00 the key will be good for 59 minutes.

White Label Options
